CP212 Lab 8 : Error Avoidance and Recovery

Labs Submission due: Friday 11:59 pm

Week of

You want to do everything possible to keep errors from occurring. When possible, you want to make your code robust enough so that it can catch and fix as many errors as possible without resorting to "error handling". Although sometimes, the user is bound to get the best of your program by doing something you never considered remotely possible.

If an error occurs and your program cannot recover, you want to at least have your program exit in a graceful manner. Ideally in a way that doesn't require the system to be rebooted!

Here are some tips to follow to ensure a graceful exit even when an error occurs:

(paraphrased from Chapter 6 - VBA For Dummies by John Paul Mueller)

Custom Error Handling Example - Example6-2.xls

Common VB Error Codes

6 - Overflow (entered a value too large like 30000 where it should be stored as a Byte)
9 - Subscript Out of Range
11 - Division By Zero
13 - Type Mismatch

The process of error handling (also known as trapping or catching errors) deals with catching runtime errors before they cause your program to stop and can be broken down into 4 steps:

Here is an example that you could use as a template for your own programs:

Sub BasicErrorHandling()

    ' Turn on Error Handling - Setting the trap
    On Error GoTo ErrorHandler

    ' Code that might cause an error goes here

    ' Turn off Error Handling - Disable the trap
    On Error GoTo 0

CleanExit:
    ' Exit the application so error handlers aren't executed
    Exit Sub

ErrorHandler:
    ' An error occurred, so explain it nicely, with options to fix it.
    MsgBox "The " & Chr(34) & Err.Description & Chr(34) & " error occurred [" & Err.Number & "].", _
    vbCritical, "Error Handled"

    ' Clear the error so its values aren't used again by mistake
    Err.Clear
    Resume CleanExit
End Sub

The Err Object

When a runtime error (such as an index out of range error, Division By Zero, Typemismatch etc.) occurs, an object of type ErrObject gets created and is referred as Err. This Err object can be examined to see what the problem was, and then your code can take steps to either ask for the user to re-enter the value, or your code can correct the problem with some sort of default value or possibly even just ignore the error.

Here are some basic properties and methods of the Err object. Check the online help for more info:

Properties Methods
Err.Name Err.Clear
Err.Description Err.Raise
Err.Source

If you want to provide information about the errors you could write a function such as the one below to output the error info in a more readable format:

Public Function formatErrorMessage(e As ErrObject) As String
    ' Formats the info from the ErrObject and returns a nicely formatted String
    Dim msg As String
    msg = "Error Number: " & e.Number & vbCrLf
    msg = msg & "Description: " & e.Description & vbCrLf

    ' Return the string of a nicely formatted error
    formatErrorMessage = msg
End Function

Raising Custom Errors

It is possible to use the Err.Raise method to create your own custom errors for more complex programs. Usage:

Sub CustomErrorHandlingExample()
    Dim result As VbMsgBoxResult

    ' Turn on Error Handling
    On Error GoTo ErrorHandler

    ' More code...
    result = MsgBox("As an example, I will throw an error if you click Abort.", _
    vbAbortRetryIgnore, "Try this")
    If result = vbAbort Then
    Err.Raise 65535, "CustomSource", "You clicked Abort!"
    End If

    ' Turn off Error Handling
    On Error GoTo 0

CleanExit:
    ' Exit the application so error handlers aren't executed
    Exit Sub

ErrorHandler:
    ' An error occured, so explain it nicely, with options to fix it.
    MsgBox "The " & Chr(34) & Err.Description & Chr(34) & " error occurred [" & Err.Number & "]", vbCritical, "Error Handled"
    MsgBox "The source of the error was: " & Err.Source
    ' Clear the error so its values aren't used again by mistake
    Err.Clear
    Resume CleanExit
End Sub

Other key points:

The IsError Function

The IsError function can be used in combination with an If statement inside a spreadsheet cell to display meaningful error messages instead of the cryptic ones that Excel displays, such as the one shown below:

The IsError(value) function takes a value that could refer to any resulting value: Value refers to any error value (#N/A, #VALUE!, #REF!, #DIV/0!, #NUM!, #NAME?, or #NULL!). It is a Boolean function which returns True if an error occurred, or False if it didn't.

If used in VBA code, the function still returns True or False and should still take a value, such as the code shown below:

If IsError(myCell.Value) Then
' Do something since an error occurred
Else
' An error did not occur
End If

Using this basic code, you can create a number of different standard dialog boxes:

' This code allows users to select multiple Excel files and then opens them
Sub OpenFiles()
    Dim fd As Office.FileDialog
    Dim file As Variant

    Set fd = Application.FileDialog(msoFileDialogOpen)
    With fd
        If .Show Then
            For Each file In .SelectedItems
            ' If using a FilePicker or FolderPicker, you don't execute the files,
            ' you do other things.
            .Execute
            Next file
        End If
    End With
End Sub

The values for the msoFileDialogTypes are msoFileDialogOpen, msoFileDialogSaveAs, msoFileDialogFolderPicker, and msoFileDialogFilePicker.

Practice

The following code works fine with an age less than 256. If words, or a larger value is entered, it generates runtime errors. Copy and paste it into a code module:

Sub ch12task1()
    Dim age As Byte
    age = InputBox("How old are you?", "Age")
    MsgBox "Your age in 2021 will be " & age + (2021 - Year(Now)) & ".", _
      vbOKOnly + vbInformation, "Doomsday"
End Sub

Run the program before you make any changes to learn the error numbers and descriptions associated with these common runtime errors. Enter the following values and see the error description and error number that gets generated:

1000
twentyfive

Use Error Handling, not just If statements and modify the code so it displays an appropriate error message and ends cleanly if invalid data is entered.

Links

Error Handling - External Link

Date & Time functions in VBA - External Link

Instructions

Tasks

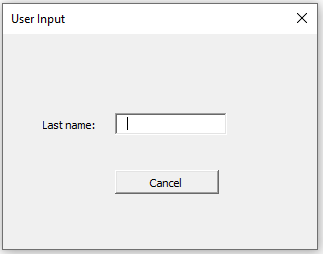

  1. Open a new workbook, get into the VBE, insert a user form, add a text box named txtLastName, and add a Last Name label to its left. Add a Cancel button to the userform. This text box is supposed to capture a person's last name. Therefore, it should contain alphabetical characters only. The userform may look like:

    error (10K)

    • You could perform an error check in a Valid function subroutine, but you might want to check for nonalphabetical characters at the same time the user is typing the name. You can do this with the Change event for a text box. In this case, the event handler's name is txtLastName_Change. This event fires each time any change occurs to the contents of the text box, including the insertion of a new character.

    • Write the appropriate code for this event handler. It should check whether the last character (the one most recently typed) is alphabetical. You can use the Right string function to check if the entered character is a character or not:

      If Not (UCase(Right(name, 1)) >= "A" And UCase(Right(name, 1)) <= "Z") Then
--------- ' Other code here

    • If not, it should display an appropriate message box telling the user to type alphabetical characters only, set the focus to the text box, and exit the sub. For example, if the user types Smi7, it should recognize that the fourth character is nonalphabetical and respond accordingly.

  2. Inside the same file, copy the code below into a new module named Task2:

    Sub OpenAFile()
    ' Opens a file from the folder this workbook is saved in
    Dim strFileName As String
    strFileName = "sample.xlsx"
    ' Turn off the default Excel messages
    Application.DisplayAlerts = False
    Workbooks.Open Filename:=ThisWorkbook.Path & "\" & strFileName
    ' Turn on the alerts again
    Application.DisplayAlerts = True
End Sub

    Try running the code. Since you don't have the sample file in your folder, it displays a runtime error.

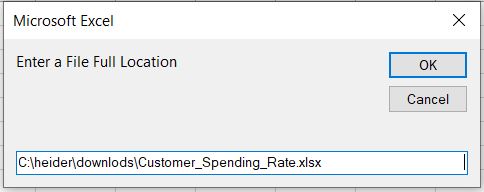

    • Add a message asking the user to ener a full file location to be opened by this sub:

      FileLocation3 (10K)

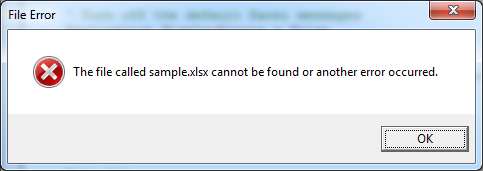

      • and the Write error handling into the subroutine to display the following message when the file can't be found:

      error (10K)

    • Make sure to include the custom title and the vbCritical button style.
    • Create a worksheet named FileCheck and place a button that runs the subroutine.

Note
You have to use Button(s) on worksheet to run the tasks in this lab and all next labs and assignments. Marks will be deducted if you do not use Buttons
