CP216: Lab 07 - Spring 2025 - Recursion

The CPUlator: https://cpulator.01xz.net/?sys=arm-de1soc.

Recursion

In the Stack Frames lab we learned how to use stack frames when defining subroutines. As a useful side benefit the use of stack frames allows subroutines to be re-entrant. If code can be interrupted, but is returned to the same state as it was when interrupted, and then can resume executing as if it was never interrupted, that code is re-entrant. Recursive code works this way: a subroutine makes a call to itself and is able to continue execution without bad side-effects after the completion of the recursive call. Stack frames make the implementation of recursion easy.

The gcd subroutine uses recursion to find the Greatest Common Denominator of two positive integers. Its algorithm is (roughly) the equivalent of the following C code (Euclid's algorithm):


int gcd(a, b) {
    if(a == b) {
        return a;
    } else if(a > b) {
        return gcd(b, a - b);
    } else {
        return gcd(b, a);
    }



The entire program is available at gcd_recursive.s.

The main program call to gcd is:


ldr    r1, =numbers    // get address of numbers
ldr    r2, [r1, #4]    // put second number into register (4 bytes past first number)
stmfd  sp!, {r2}       // push second number onto stack
ldr    r2, [r1]        // put first number into register
stmfd  sp!, {r2}       // push first number onto stack
bl     gcd             // call the subroutine
add    sp, sp, #8      // release the parameter memory from the stack
// Result in r0
str    r0, [r1, #8]    // write result back to memory (8 bytes past first number)



Note that the source of the numbers is arbitrary - in this example we get the numbers from memory. Although the numbers come from memory, they are passed by value - i.e. as the actual numbers, not the memory addresses of the numbers - to the gcd subroutine, and the result is returned in r0.

The subroutine then creates a stack frame and extracts the parameters from that stack frame:


stmfd   sp!, {fp}       // preserve frame pointer
mov     fp, sp          // save current stack top to frame pointer
// preserve other registers including lr because of recursive call
stmfd   sp!, {r1, lr}

// Copy parameters into registers
ldr     r0, [fp, #4]    // get a
ldr     r1, [fp, #8]    // get b



The main body of the subroutine follows the given algorithm in defining the recursive base case (a == b) making the recursive call when the base case is not true. In making the recursive call the subroutine pushes a new set of parameters onto the stack and a new stack frame is created:


cmp    r0, r1
beq    _gcd            // a is the gcd: return in r0
subgt  r0, r0, r1      // a > b: gcd(b, a - b)
                       // else:  gcd(b, a)
stmfd  sp!, {r0}       // 2nd parameter - push a onto the stack
stmfd  sp!, {r1}       // 1st parameter - push b onto the stack
bl     gcd             // recursive call to subroutine



When each call to the subroutine ends the subroutine has to clean up its own stack frame:


add     sp, sp, #8      // release parameter memory from stack

_gcd:
ldmfd   sp!, {r1, lr}   // pop preserved registers
ldmfd   sp!, {fp}       // pop frame pointer
bx      lr              // return from subroutine



Other than the fact the the subroutine is recursive, and therefore the lr register must be preserved between calls or the subroutine will lose the to return to when it ends, there is nothing different about how it handles stack frames than in any of our previous examples.

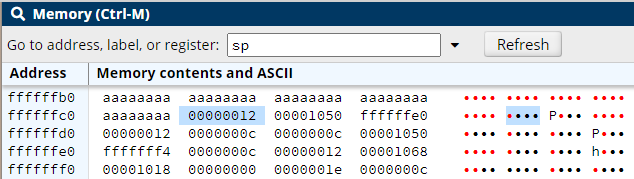

After the main call to gcd and two recursive calls the stack contains:

which is more easily readable as:

We are seeing recursion 'under the hood', so to speak. This example shows how re-entrant code works, the basic idea being that once a routine call has finished, the state of the registers must be identical to what they were before the routine was called, except for any return value (usually returned in r0). The routines may also update memory if that's their purpose. When the gcd subroutine finishes only the r0 register has not been preserved as what it was before the subroutine was called.

The following dynamic diagram shows how the stack frame for this program is handled:

1. The file l07_t01.s contains the following subroutine:


   isUpperCase:
   /*
   -------------------------------------------------------
   Determines if a character is an upper case letter.
   -------------------------------------------------------
   Parameters
     r2 - character to test
   Returns:
     r0 - returns True (1) if upper case, False (0) otherwise
   -------------------------------------------------------
   */
   mov    r0, #0           // default False
   cmp    r2, #'A'
   blt    _isUpperCase     // less than 'A', return False
   cmp    r2, #'Z'
   movle  r0, #1           // less than or equal to 'Z', return True
   _isUpperCase:
   bx     lr



   This subroutine does not use the stack to preserve any registers because it is using r2 as the source of its data and not changing it, and is returning its result in r0. It returns to the line after it is called with bx lr, which copies the contents of the link register back to the program counter.

   The file also contains the subroutine isLowerCase, which works the same way. Type a character into the UART and run the program to see what happens.

   The file also contains the subroutine isLetter, which uses the isLowerCase and isUpperCase subroutines to determine if a character is a letter or not:


   //-------------------------------------------------------
   isLetter:
   /*
   -------------------------------------------------------
   Determines if a character is a letter.
   -------------------------------------------------------
   Parameters
     r2 - character to test
   Returns:
     r0 - returns True (1) if letter, False (0) otherwise
   -------------------------------------------------------
   */
   bl      isLowerCase     // test for lowercase
   cmp     r0, #0
   bleq    isUpperCase     // not lowercase? Test for uppercase.
   bx      lr



   This looks like the previous subroutines, yet this subroutine fails in an interesting way. Uncomment the call to it, run the program, and explain how it fails and correct the problem. You must retain the subroutine calls to isLowerCase and isUpperCase.

   Add your comments to the location where you corrected the code and surround your comments and code with the following comments:

   //=======================================================

   // comments and corrected code

   //=======================================================


   ---

2. The file l07_t02.s contains the following subroutine definition:


   Palindrome:
   /*
   -------------------------------------------------------
   Determines if a string is a palindrome.
   -------------------------------------------------------
   Parameters
     r4 - address of first character of string to test
     r5 - address of last character of string to test
   Uses:
     R? - ?
   Returns:
     r0 - returns True (1) if palindrome, False (0) otherwise
   -------------------------------------------------------
   */



   Complete this subroutine with a recursive algorithm. (Fix the problem in isLetter as you did for the previous task.)

   1. the string contains only lower case letters, no digits, spaces, or punctuation (ex: "otto")
   2. string has mixed case, but only letters (ex: "RaceCar")
   3. string has mixed case, and non-letters (ex: "A man, a plan, a canal, Panama!")

   All versions must return false for a non-palindrome (ex: "David"). Do not change the contents of the string in memory.

   Hint: here is Python code for a recursive palindrome function:


   def palindrome(string):

       if len(string) <= 1:
           pal = True
       elif not string[0].isalpha():
           pal = is_pal(string[1:])
       elif not string[-1].isalpha():
           pal = is_pal(string[:-1])
       elif string[0].lower() != string[-1].lower():
           pal = False
       else:
           pal = is_pal(string[1:-1])
       return pal



   ---

Zip your files together in zip file named login_l07.zip (using your Laurier login, of course) and submit that zip file to the MLS dropbox.
