Introduction to Operating Systems

Author

Instructor: Dr. Sukhjit Singh Sehra

Agenda

Teaching Philosphy
What an operating system?
OS building blocks and core abstractions
Virtualization of CPU and memory
Concurrency and coordination challenges
Persistence, file systems, and storage
Security
Further Reading

Together, We Succeed

OS role analogy

Think of yourselves as customers. Everyone wants their order taken promptly, delivered to the correct table on time, prepared as requested, and billed accurately. What if the waiter panics?

The operating system plays the role of the waiter, serving many clients concurrently
It understands the menu (hardware capabilities), records requests, coordinates with the kitchen (devices), delivers food to the correct table, and tracks billing

Operating Systems

Every OS answers the same uncomfortable questions: Who runs next? Who waits? Who gets memory? Who is stopped when something goes wrong?

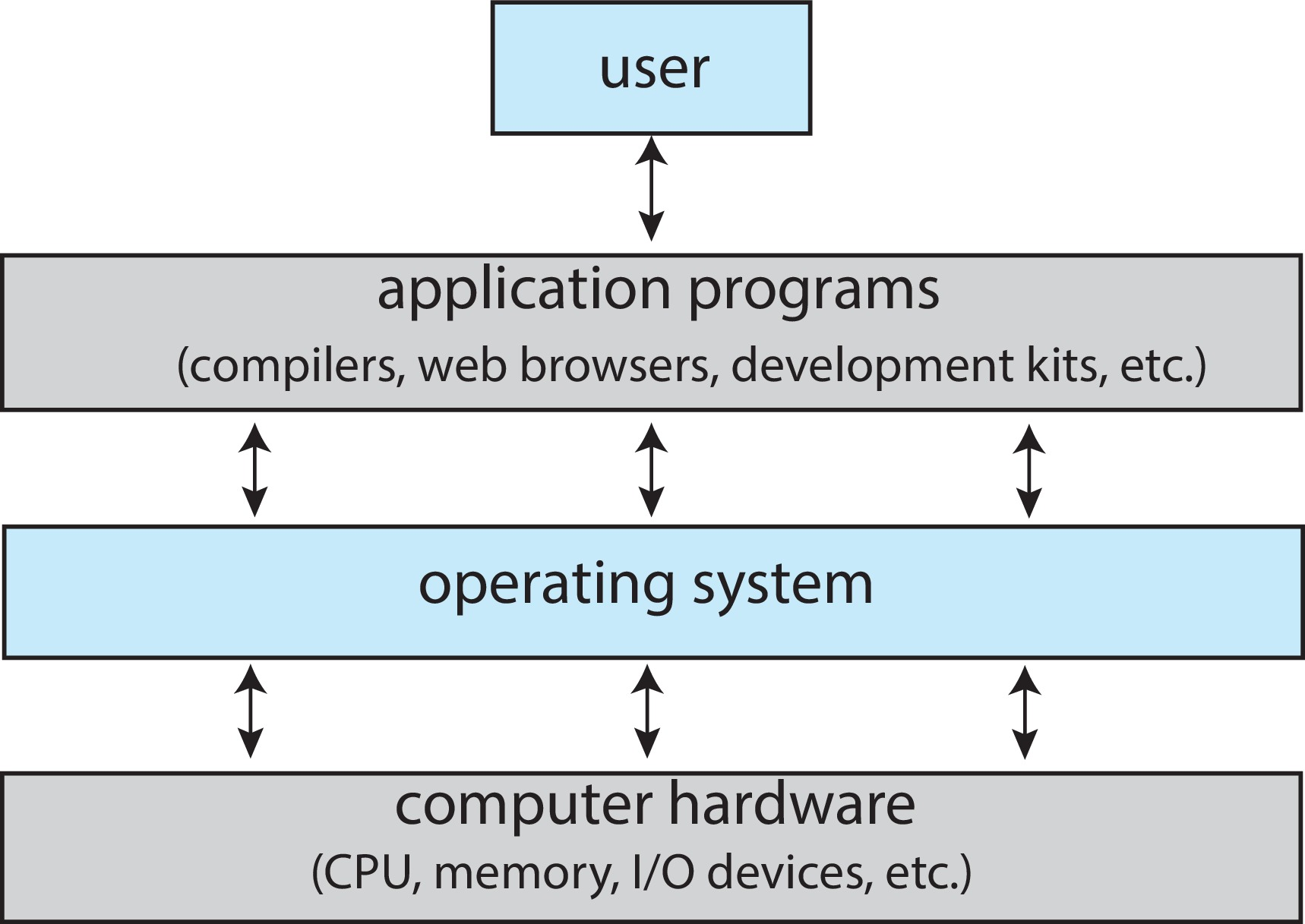

The operating system acts as middleware between applications and hardware.
- It executes user programs and makes solving problems easier
- It orchestrates concurrently executing processes
- It manages scarce resources such as CPU, memory, and devices
- It enforces access control and protection
- It provides abstractions that hide hardware complexity from software

Operating Systems

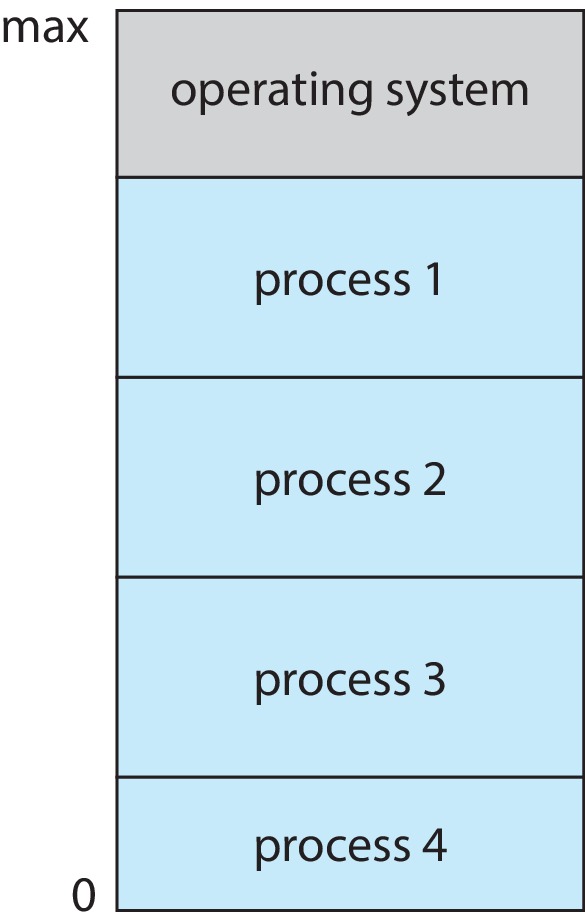

Multiprogramming - More than one program is loaded in memory and can be active at the same time
Multitasking (Time-sharing) - The CPU switches rapidly among processes so users can interact with multiple jobs concurrently
Multi-user - The operating system supports multiple users simultaneously using isolation and protection mechanisms
Enabled by:
- Context Switching and preemption
- Process Management
- CPU scheduling
- Virtual memory and protection

OS building blocks

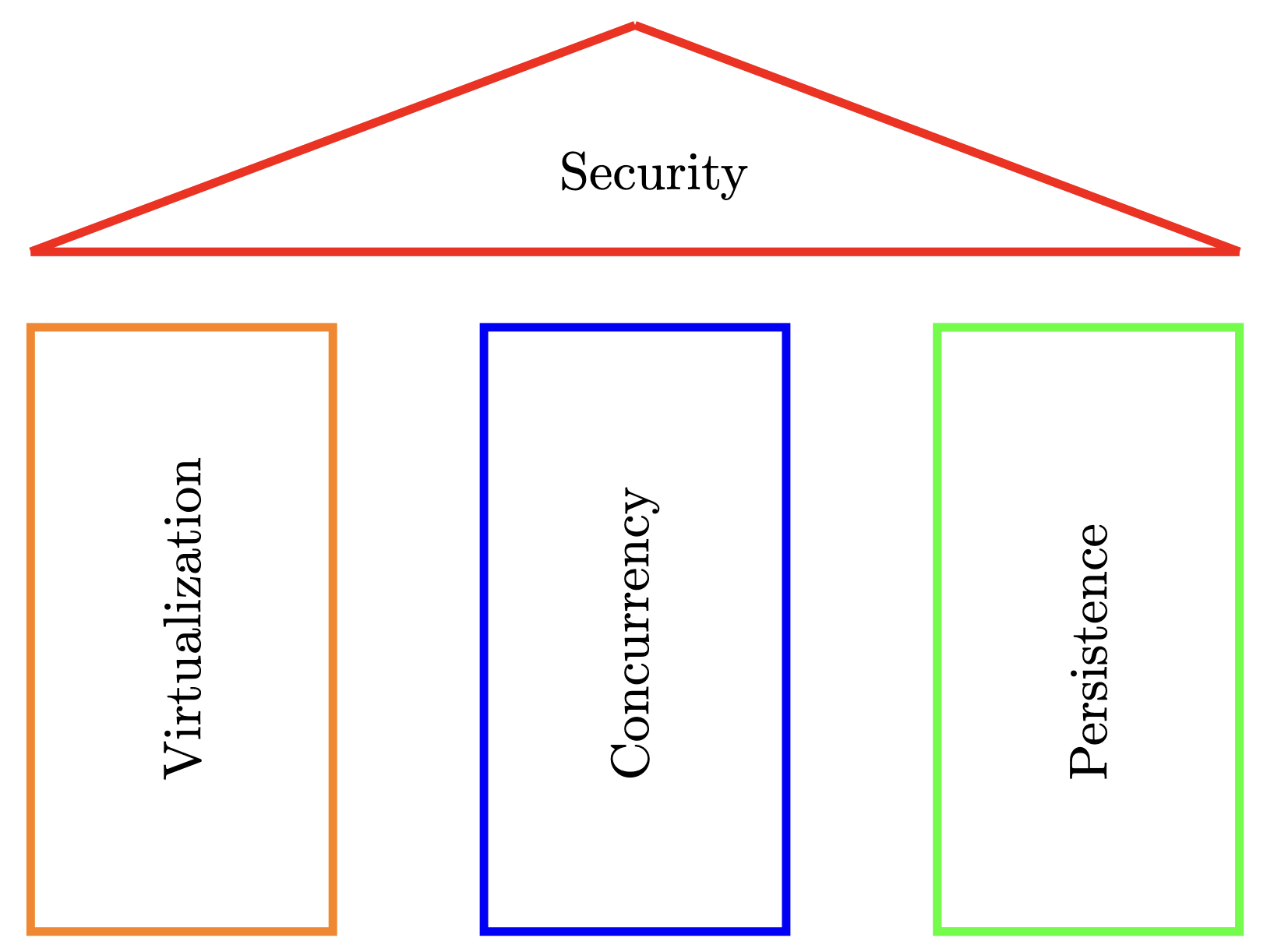

OS design nicely separates into three pillars, with security as a transcendental layer covering/overarching all pillars.

Virtualizing the CPU

The OS is a resource manager and creates a virtual layer that represents the physical resource that allows multiple applications or processes to share the resource without interfering with each other.
Each process believes it has all resources for itself
- CPU: unlimited amount of instructions, continuous execution. The system has a very large number of virtual CPUs.
- Memory: unlimited memory (and disk) is available
- Challenge: how to share constrained resources (Week 2 - 4)

Code Example//cpu.c
#include <stdio.h>
#include <stdlib.h>
#include <unistd.h>   // sleep()
int main(int argc, char *argv[]) {
    if (argc != 2) {
        fprintf(stderr, "usage: cpu <string>\n");
        return 1;
    }
    char *str = argv[1];
    while (1) {
        sleep(1);
        printf("%s\n", str);
        fflush(stdout);
    }
    return 0;
}

Code Example

//cpu.c
#include <stdio.h>
#include <stdlib.h>
#include <unistd.h>   // sleep()
int main(int argc, char *argv[]) {
    if (argc != 2) {
        fprintf(stderr, "usage: cpu <string>\n");
        return 1;
    }
    char *str = argv[1];
    while (1) {
        sleep(1);
        printf("%s\n", str);
        fflush(stdout);
    }
    return 0;
}

Can we run multiple cpu.c programs at the same time, and what happens when we do?

Only one cpu.c will run; the others will not run until it finishes
All programs run at full speed because the OS creates extra CPUs
All programs run, but each appears to have its own CPU due to OS virtualizes and shares the processor

Code Example

//cpu.c
#include <stdio.h>
#include <stdlib.h>
#include <unistd.h>   // sleep()
int main(int argc, char *argv[]) {
    if (argc != 2) {
        fprintf(stderr, "usage: cpu <string>\n");
        return 1;
    }
    char *str = argv[1];
    while (1) {
        sleep(1);
        printf("%s\n", str);
        fflush(stdout);
    }
    return 0;
}

Can we run multiple cpu.c programs at the same time, and what happens when I do?

❌ Only one cpu.c will run; the others will not run until it finishes

❌ All programs run at full speed because the OS creates extra CPUs

✅ All programs will run, but each appears to have its own CPU because the OS virtualizes and shares the processor

Computer-System Operation

Common Functions of Interrupts
- Interrupt transfers control to the interrupt service routine generally, through the interrupt vector, which contains the addresses of all the service routines
- Interrupt architecture must save the address of the interrupted instruction
- A trap or exception is a software-generated interrupt caused either by an error or a user request
- An operating system is interrupt driven

Interrupt Timeline

Interrupt Handling

The CPU hardware has a wire called the interrupt-request line that the CPU senses after executing every instruction.
When the CPU detects (an asynchronous event) that a controller has asserted a signal on the interrupt-request line.
The operating system preserves the state of the CPU by storing the registers and the program counter
It reads the interrupt number and jumps to the interrupt-handler routine by using that interrupt number as an index into the interrupt vector.
It then starts execution at the address associated with that index.
It performs a state restore and executes a return from interrupt instruction to return the CPU to the execution state prior to the interrupt.

Interrupt-driven I/O Cycle

Most CPUs have two interrupt request lines.
One is the non-maskable interrupt, which is reserved for events such as unrecoverable memory errors.
The second interrupt line is maskable: it can be turned off by the CPU before the execution of critical instruction sequences that must not be interrupted.
The maskable interrupt is used by device controllers to request service.
The interrupt mechanism also implements a system of interrupt priority levels.
These levels enable the CPU to defer the handling of low-priority interrupts without masking all interrupts and makes it possible for a high-priority interrupt to preempt the execution of a low-priority interrupt.

Checking Interrupts on Linux OS

The file / proc /interrupts contains information about the hardware interrupts in use and how many times processor has been interrupted
- watch -n1 “cat / proc /interrupts”
- The first column indicates the IRQ (Interrupt Request Line) number. Subsequent columns indicate how many interrupts have been generated for the IRQ number on different CPU cores. The last column provides information on the programmable interrupt controller that handles the interrupt.
- A small IRQ number value means higher priority.

Checking Interrupts on Linux OS

The software interrupts are generated when the CPU executes an instruction which can cause an exception condition in the CPU [ALU unit] itself.
- watch -n1 “cat / proc /stat”
- The ” intr ” line gives counts of interrupts serviced since boot time, for each of the possible system interrupts.

Virtualizing Memory

The physical memory is an array of bytes
A program keeps all of its data structures in memory.
- Read memory (load)
  - Specify an address to be able to access the data
- Write memory (store)
  - Specify the data to be written to the given address
Each process accesses its own private virtual address space (Week 11)

Code Example\\mem.c
#include <unistd.h>   // getpid(), sleep()
#include <stdio.h>
#include <stdlib.h>
#include <assert.h>
int main() {
    int *p = (int *)malloc(sizeof(int));
    assert(p != NULL);
    printf("(%d) address of p: %p\n", getpid(), (void *)p);
    *p = 0;
    for (int i = 0; i < 10; i++) {
        sleep(1);
        (*p)++;
        printf("(%d) address of p: %p | p: %d\n", getpid(), (void *)p, *p);
        fflush(stdout);
    }
    free(p);
    return 0;
}

On modern OS, the numerical virtual addresses may differ across processes, but the illusion of private physical memory remains intact.

Memory Virtualization: Illusion vs Reality

Illusion (Process View)
- Each process believes it has its own private memory
- Memory references affect only the running program
- The process appears to have exclusive access to physical memory

Reality (OS View)
- The OS maps each virtual address space onto physical memory
- Physical memory is a shared resource, managed by the OS
- The same physical frames may be safely shared across processes (e.g., read-only code, file-backed pages)

The problem of Concurrency

The OS is juggling many things at once, first running one process, then another, and so forth.
Modern multi-threaded programs also exhibit the concurrency problem. OS must handle concurrent events and untangle them as necessary.
Hide concurrency from independent processes
Manage concurrency from dependent processes by providing synchronization and communication primitives
Challenge: providing the right primitives

Code Example\\threads.c
#include <stdio.h>
#include <stdlib.h>
#include <pthread.h>
#include <errno.h>
#include <string.h>

volatile int counter = 0;
int loops;
void *worker(void *arg) {
    (void)arg;
    for (int i = 0; i < loops; i++) {
        counter++;   // intentionally NOT atomic (race condition demo)
    }
    return NULL;
}
int main(int argc, char *argv[]) {
    if (argc != 2) {
        fprintf(stderr, "usage: threads <loops>\n");
        return 1;
    }
    loops = atoi(argv[1]);
    pthread_t p1, p2;
    printf("Initial value : %d\n", counter);
    pthread_create(&p1, NULL, worker, NULL);
    pthread_create(&p2, NULL, worker, NULL);
    pthread_join(p1, NULL);
    pthread_join(p2, NULL);
    printf("Final value   : %d\n", counter);
    return 0;
}

Code Example\\threads.c
#include <stdio.h>
#include <stdlib.h>
#include <pthread.h>
#include <errno.h>
#include <string.h>

volatile int counter = 0;
int loops;
void *worker(void *arg) {
    (void)arg;
    for (int i = 0; i < loops; i++) {
        counter++;   // intentionally NOT atomic (race condition demo)
    }
    return NULL;
}
int main(int argc, char *argv[]) {
    if (argc != 2) {
        fprintf(stderr, "usage: threads <loops>\n");
        return 1;
    }
    loops = atoi(argv[1]);
    pthread_t p1, p2;
    printf("Initial value : %d\n", counter);
    pthread_create(&p1, NULL, worker, NULL);
    pthread_create(&p2, NULL, worker, NULL);
    pthread_join(p1, NULL);
    pthread_join(p2, NULL);
    printf("Final value   : %d\n", counter);
    return 0;
}

Code Example\\threads.c
#include <stdio.h>
#include <stdlib.h>
#include <pthread.h>
#include <errno.h>
#include <string.h>

volatile int counter = 0;
int loops;
void *worker(void *arg) {
    (void)arg;
    for (int i = 0; i < loops; i++) {
        counter++;   // intentionally NOT atomic (race condition demo)
    }
    return NULL;
}
int main(int argc, char *argv[]) {
    if (argc != 2) {
        fprintf(stderr, "usage: threads <loops>\n");
        return 1;
    }
    loops = atoi(argv[1]);
    pthread_t p1, p2;
    printf("Initial value : %d\n", counter);
    pthread_create(&p1, NULL, worker, NULL);
    pthread_create(&p2, NULL, worker, NULL);
    pthread_join(p1, NULL);
    pthread_join(p2, NULL);
    printf("Final value   : %d\n", counter);
    return 0;
}

Concurrency Example

Inconsistent Result: We see the two threads when executed for large number produces inconsistent result. Why? Concurrency problem (Race Condition)?

Increment a shared counter -> take three instructions (on worker(): counter++ (non-atomic)).
1. edx = counter; // load from memory into register
2. edx = edx + 1; // increment in register
3. counter = edx; // store back to memory
These three instructions do not execute atomically -> Problem of concurrency happen.

Assembly View of counter++

  4007a0:       8b 15 be 08 20 00       mov    0x2008be(%rip),%edx        # 601064 <counter>
  4007a9:       83 c2 01                add    $0x1,%edx
  4007ae:       89 15 b0 08 20 00       mov    %edx,0x2008b0(%rip)        # 601064 <counter>

objdump –disassemble-all thebinary

If two threads do this at the same time:

Thread A loads counter = 41

Thread B loads counter = 41

Thread A stores 42

Thread B stores 42

Any Solution to Concurrency?

When there are many concurrently executing threads within the same memory space, how can we build a correctly working program?
What primitives are needed from the OS? What mechanisms should be provided by the hardware?
How can we use them to solve the problems of concurrency?

Code Example\\threads_mutex.c
#include <stdio.h>
#include <stdlib.h>
#include <pthread.h>
#include <errno.h>
#include <string.h>

volatile int counter = 0;
int loops;
pthread_mutex_t lock = PTHREAD_MUTEX_INITIALIZER;
void *worker(void *arg) {
    (void)arg;
    for (int i = 0; i < loops; i++) {
        /* lock/unlock around the critical section */
        pthread_mutex_lock(&lock);
        counter++;   // now protected
        pthread_mutex_unlock(&lock);
    }
    return NULL;
}
int main(int argc, char *argv[]) {
    if (argc != 2) {
        fprintf(stderr, "usage: threads <loops>\n");
        return 1;
    }
    loops = atoi(argv[1]);
    pthread_t p1, p2;
    printf("Initial value : %d\n", counter);
    pthread_create(&p1, NULL, worker, NULL);
    pthread_create(&p2, NULL, worker, NULL);
    pthread_join(p1, NULL);
    pthread_join(p2, NULL);
    printf("Final value   : %d\n", counter);
    return 0;
}
Persistence - How to store information?
Lifetime of information is greater than lifetime of a process.
Enable processes to access non-volatile information (Week 12). Devices such as DRAM store values in a volatile
Hardware and software are needed to store data persistently
Hardware: I/O device such as a hard drive, solid state drives (SSDs)
File system: the software in the operating system that usually manages the disk.
File system is responsible for storing any files the user creates.
Be resilient to failures (e.g., power loss)
Provide access control

How to store information?

What OS does in order to write to disk?
- Figure out where on disk this new data will reside
- Issue I/O requests to the underlying storage device
File system handles system crashes during write.
- Journaling or copy-on-write
- Carefully ordering writes to disk

Security

OS is a gatekeeper, it ensures and enforces security. OS is also privileged and therefore frequently attacked.

Isolate processes from each other and the OS
Authenticate users (who is allowed to do what)
Protect itself against malicious network/user input
Harden program execution (through mitigations)
Challenge: performance versus security

How a Modern Computer Works

Direct Memory Access Structure

A Von Neuman’s Architecture

Computer-System Architecture

Most systems use a single general-purpose processor containing one CPU with single processing core. The core can execute a general-purpose instruction set.
- Most systems have special-purpose processors as well, but that does not make it multiprocessor system.
- Multiprocessor’s systems growing in use and importance
- Also known as parallel systems, tightly-coupled systems

Computer-System Architecture

Advantages include:
- Increased throughput
- Economy of scale
- Increased reliability – graceful degradation or fault tolerance
Two types:
- Asymmetric Multiprocessing – each processor is assigned a specific task.
- Symmetric Multiprocessing – each processor performs all tasks

Symmetric Multiprocessing Architecture

Dual-Core Design

Multi-chip and multicore
- Systems containing all chips
  - Chassis containing multiple separate systems

Non-Uniform Memory Access System

The extent of sharing of storage can create different multi-processor systems.

Clustered Systems

Like multiprocessor systems, but multiple systems working together
- Usually sharing storage via a storage-area network (SAN)
- Provides a high-availability service which survives failures
  - Asymmetric clustering has one machine in hot-standby mode
  - Symmetric clustering has multiple nodes running applications, monitoring each other
- Some clusters are for high-performance computing (HPC)
  - Applications must be written to use parallelization
- Some have distributed lock manager (DLM) to avoid conflicting operations

Clustered Systems

Hadoop

Operating-System Operations: Bootstrap

Bootstrap program is loaded at power-up or reboot
- Typically stored in ROM or EPROM, generally known as firmware
- Initializes all aspects of system
- Loads operating system kernel and starts execution

Operating-System Operations:

Kernel loads
- Starts system daemons (services provided outside of the kernel)
- Kernel interrupt driven (hardware and software)
- Hardware interrupt by one of the devices
Software interrupt (exception or trap):
- Software error (e.g., division by zero)
- Request for operating system service – system call
- Other process problems include infinite loop, processes modifying each other or the operating system

Multiprogramming (Batch system)

Single user cannot always keep CPU and I/O devices busy
Multiprogramming organizes jobs (code and data) so CPU always has one to execute
A subset of total jobs in system is kept in memory
One job selected and run via job scheduling When job has to wait (for I/O for example), OS switches to another job

Multitasking (Timesharing)

A logical extension of Batch systems – the CPU switches jobs so frequently that users can interact with each job while it is running, creating interactive computing
Response time should be < 1 second
Each user has at least one program executing in memory process
- If several jobs ready to run at the same time then needs CPU scheduling
- If processes don ’t fit in memory, swapping moves them in and out to run
- Virtual memory allows execution of processes not completely in memory

Memory Layout for Multiprogrammed System

Dual-mode Operation

Dual-mode (hardware supported) operation allows OS to protect itself and other system components
User mode and kernel mode
Mode bit provided by hardware
Provides ability to distinguish when system is running user code or kernel code.
When a user is running –> mode bit is “user”(1) When kernel code is executing –> mode bit is “kernel”(0)

Dual-mode Operation

How do we guarantee that user does not explicitly set the mode bit to “kernel”?
System call changes mode to kernel, return from call resets it to user
Transition from User to Kernel Mode

Summary

Operating systems create the illusion of exclusive access to CPU, memory, and devices.
Memory, CPU, and storage are virtualized to provide isolation, protection, and performance.
These abstractions allow complex systems to work reliably, securely, and at scale.

References and Further Reading

Textbook: Chapter 1 from Arpaci-Dusseau, Remzi H., and Andrea C. Arpaci-Dusseau, Operating Systems: Three Easy Pieces, 1.10 Edition, Arpaci-Dusseau Books, LLC, 2018.
Reference: Chapter 1 from A. Silberschatz, P.B. Galvin, and G. Gagne. Operating System Concepts, 10th Edition; 2018; John Wiley and Sons.

Thanks

🚀 Welcome to CP386 Course

🤔 Any Questions?

Other Formats

Agenda

Together, We Succeed

OS role analogy

Operating Systems

Operating Systems

OS building blocks

Virtualizing the CPU

Code Example

Code Example

Code Example

Computer-System Operation

Interrupt Timeline

Interrupt Handling

Interrupt-driven I/O Cycle

Interrupt-driven I/O Cycle

Checking Interrupts on Linux OS

Checking Interrupts on Linux OS

Virtualizing Memory

Code Example

Memory Virtualization: Illusion vs Reality

The problem of Concurrency

Code Example

Code Example

Code Example

Concurrency Example

Assembly View of counter++

Any Solution to Concurrency?

Code Example

Persistence - How to store information?

How to store information?

Security

How a Modern Computer Works

A Von Neuman’s Architecture

Computer-System Architecture

Computer-System Architecture

Symmetric Multiprocessing Architecture

Dual-Core Design

Non-Uniform Memory Access System

Clustered Systems

Clustered Systems

Hadoop

Operating-System Operations: Bootstrap

Operating-System Operations:

Multiprogramming (Batch system)

Multitasking (Timesharing)

Memory Layout for Multiprogrammed System

Dual-mode Operation

Dual-mode Operation

Summary

References and Further Reading
